Choose your preferred unit to view instructions online or download the PDF for offline use.
Example:
Make certain the tape and object to be measured are both clean.

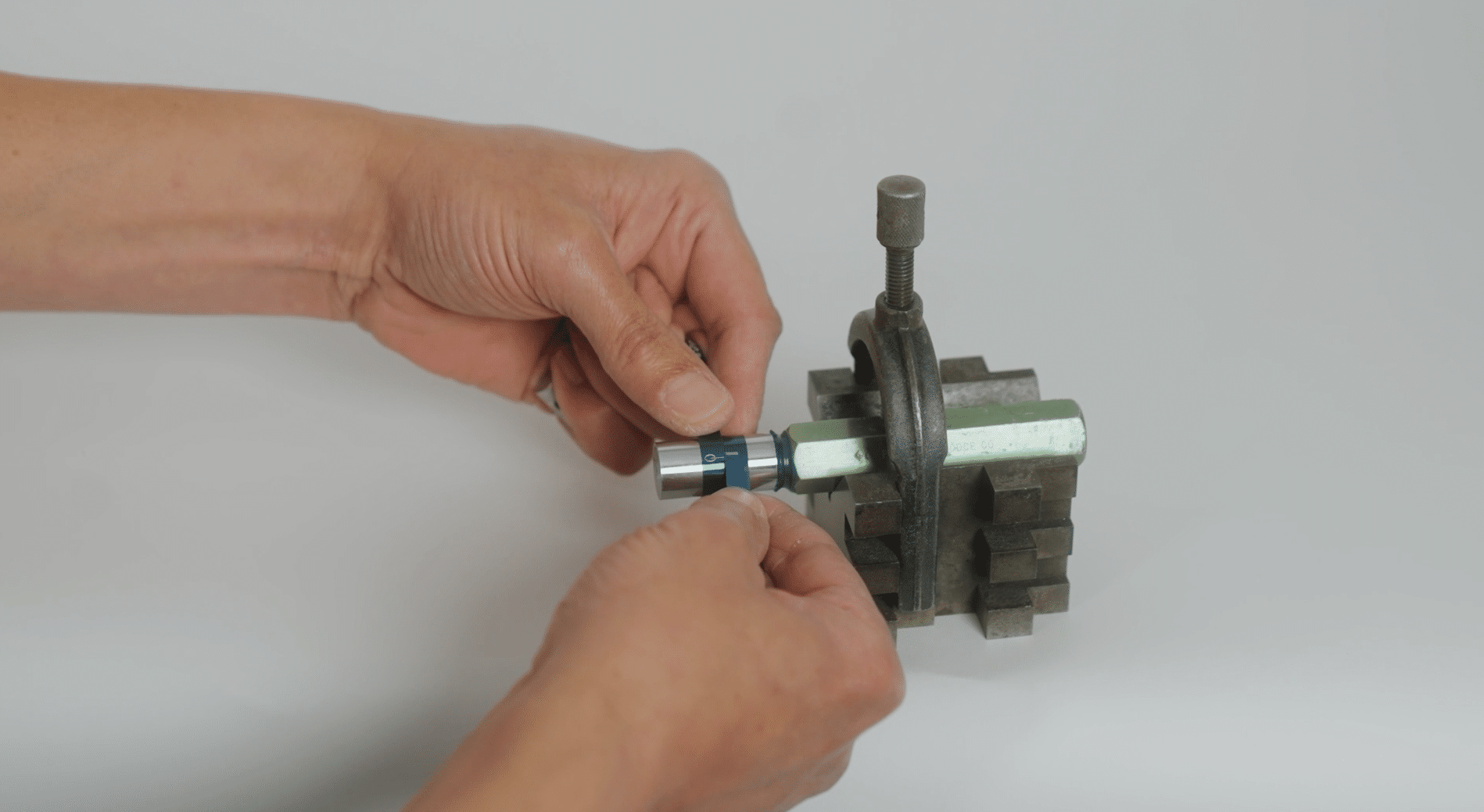

Wrap the tape around the object to be measured. Tighten the tape around the object with 5 pounds
(2.25 kg) tension for O.D. tapes.
For inside diameter tape, place the tape inside the object to be measured. Inside diameter tapes
are manufactured at 68° F under zero tension. All inside diameter tapes are marked I.D. and are
calibrated for direct inside diameter readings.
Tape may have one or more sets of separate A B C dimensions on one tape. Anytime “0” line falls between
A B C lines, part is within tolerance.
As a suggestion for checking very large diameters – pieces of masking tape can be used to hold the
tape in the proper parallel position.
Example:
Make certain the tape and object to be measured are both clean.
Wrap the tape around the object to be measured. Tighten the tape around the object with 5 pounds
(2.25 kg) tension for O.D. tapes.
For inside diameter tape, place the tape inside the object to be measured. Inside diameter tapes
are manufactured at 68° F under zero tension. All inside diameter tapes are marked I.D. and are
calibrated for direct inside diameter readings.
Tape may have one or more sets of separate A B C dimensions on one tape. Anytime “0” line falls between
A B C lines, part is within tolerance.
As a suggestion for checking very large diameters – pieces of masking tape can be used to hold the
tape in the proper parallel position.
Go/No-Go Tape (in/mm)
