Custom Wide Pi Tape® products are engineered for applications requiring increased tape width for added stability, durability, or readability. These tapes are ideal for large diameters, challenging environments, or specialized industrial uses.
Wide tapes provide a broader contact surface than standard diameter tapes, helping maintain alignment and reducing measurement variability—especially on large or heavy components.
Each Pi Tape® Wide Tape is manufactured to your exact requirements, providing added stability, durability, and readability for demanding applications. Custom configuration options include:
Custom tape width
Inside* or outside diameter
Units: Inch or metric
Measurement range and resolution
Material selection for strength and longevity
– Imperial Tapes

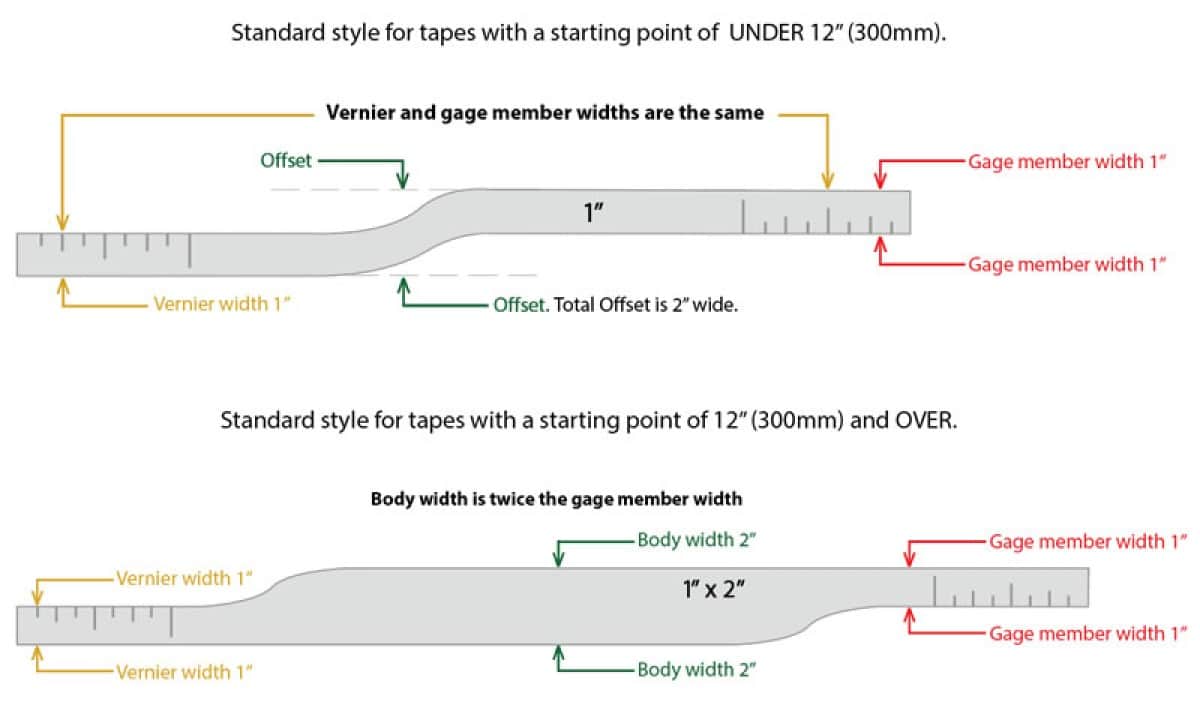

Our custom-made inch Wide Diameter Tapes feature a 1″ wide gauge member and a 2″ wide body width as standard. Additional gauge member widths of 1½”, 2″, and 5″ are also available.
Wide Diameter Tapes are offered in Blue Easy-to-Read, with a standard material thickness of 0.010″.
– Metric Tapes
Our custom-made metric Wide Diameter Tapes feature a 25.4 mm wide gauge member and a 50.8 mm wide body width as standard. Additional gauge member widths of 38.1 mm, 50.8 mm, and 63.5 mm are also available.
Wide Diameter Tapes are offered in Blue Easy-to-Read, with a standard material thickness of 0.25 mm.
*only if requirements are made
Like all Pi Tape® products, custom Wide Tapes are manufactured to strict quality standards and calibrated for direct measurement. They are engineered to maintain accuracy and stability even in demanding applications.
Accuracy: ±0.003″ up to 48″ (±0.09 mm up to 1200 mm)
Most Pi Tape® brand precision Wide Tapes are furnished with a Calibration Report. Measurement results are traceable through NIST to the International System of Units (SI), providing documented confidence in accuracy.
Note: A Calibration Report may not be available for extra-wide tapes.
Ordering Your Custom Wide Tape
Custom Wide Tapes are made-to-order and require direct consultation to ensure the correct configuration for your application.
To request a quote or place an order:
Email your application details to [email protected]
Include diameter range, units (inch or metric), environmental considerations, and any relevant prints or diagrams.
Our team will review your requirements and confirm specifications before providing a quote.
Pi Tape® manufactures precision, custom-made Wide Tapes tailored to your exact needs. Custom sizes, widths, and configurations are available.
