Digital OD/OC Tape

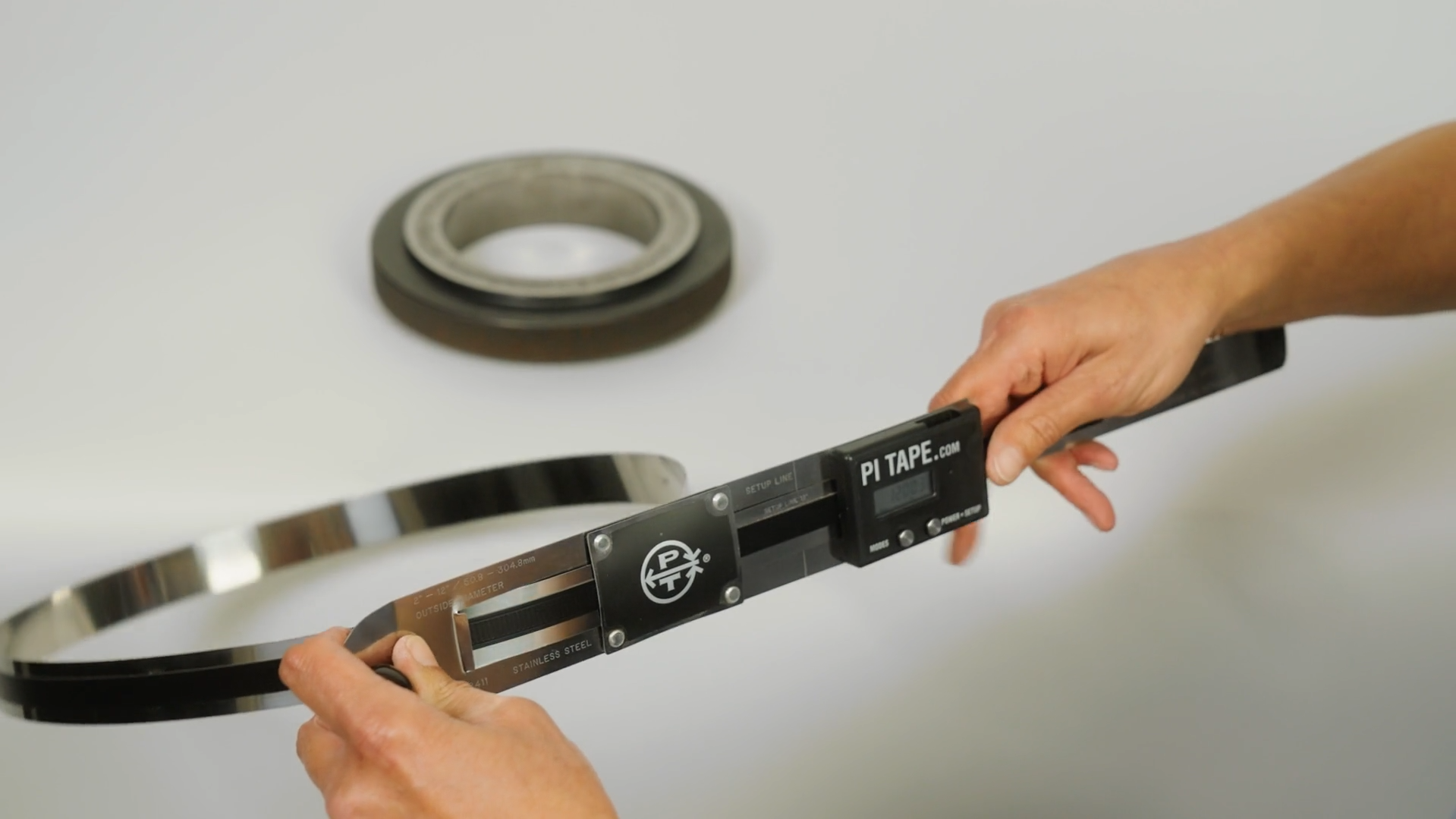

1) Insert the tail of the tape through the window at the head of the tape, then slide the tail underneath the
digital unit to prepare for setting up lines (listed on step 3 below).
NOTE: Use care when sliding the stator strip underneath the digital unit.
2) Turn on the digital unit by pushing the right button until the dashes are displayed.
3) Position the tape so that the set-up line on the head of the tape lines up exactly with the 12”
set-up line on the tail of the tape.
4) Push the right button until “SET” is displayed. The digital unit should now display the measurement
that corresponds with the set-up line.
5) Take the readings while applying 5 lbs. tension. The left button is multi-functional. Pressing it repeatedly
will display the different measurement modes. The measurement modes offered are metric circumference,
metric diameter, inch circumference, and inch diameter.
6) When not in use, the digital unit turns o automatically after approximately 5 minutes.
NOTE: If digital unit needs to be reset or error message is shown, turn o digital unit by pressing right button
until all characters disappear. Then repeat steps 2 through 4.
The diameter display has a resolution of 0.0005” (0.01mm) with an overall tape tolerance of ± .002” (± .06mm).
The circumference display has a resolution of 0.0005” (0.01mm) with an overall tape tolerance of
± .006″ (± .16mm).
ADVISORY: Should any repairs be needed, please contact us. Opening the housing unit may result in voiding
the manufacturer’s warranty. For battery replacement, please see the Digital Battery Change Instruction Sheet.
CARE: Keep tape clean and dry.

Note: For other sizes check the .pdf’s below
