Custom Belt Tapes are designed for accurate circumference and length measurement of belts, bands, and flexible looped components. Manufactured to your specifications, these tapes provide fast, consistent measurements without stretching or deformation.
Belt tapes are ideal for measuring:
They allow for repeatable measurements without removing the belt from service when appropriate.
Standard measurement tools often introduce error when measuring flexible materials. Custom Pi Tape® Belt Tapes:
All Pi Tape® Belt Tapes are manufactured to order based on your application requirements. Custom options include:
Measurement range
Units: Inch or metric
Scale type and resolution
Material selection for durability and environmental conditions
Application-specific requirements
– Imperial Tapes

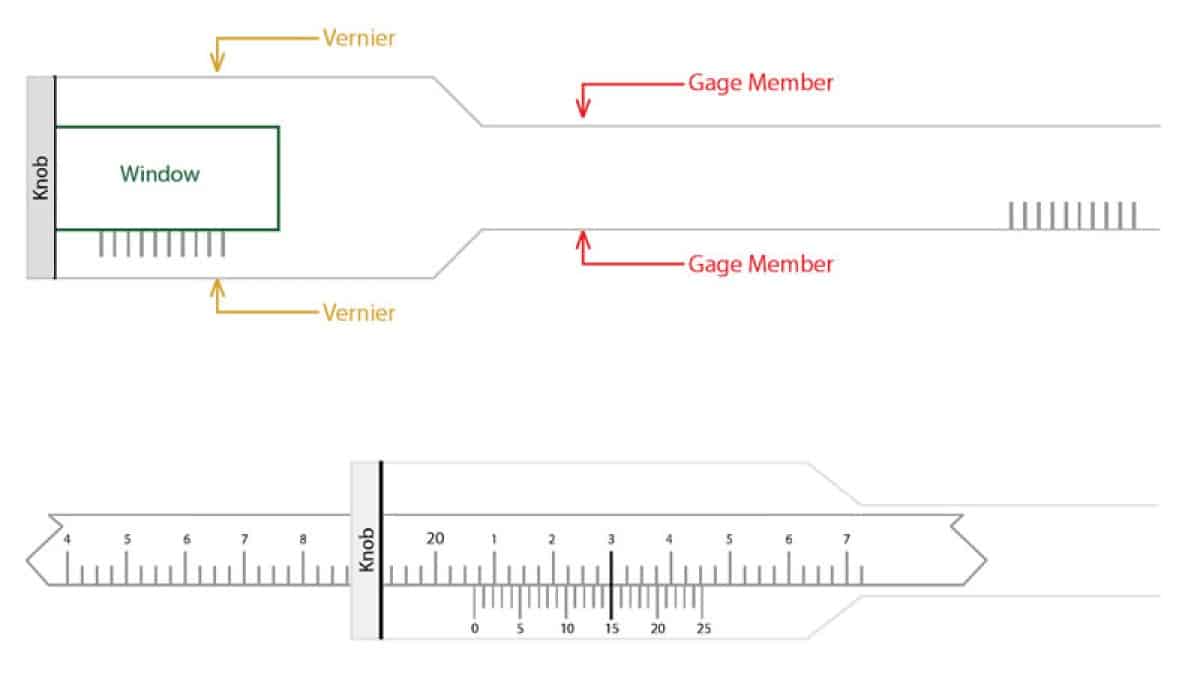

Our custom inch Belt Diameter Tapes feature a 2″ wide vernier section and a 1″ wide gauge member. Additional vernier widths of 2½” and 5″ are also available. These tapes are offered in Blue Easy-to-Read, and the standard material thickness is 0.010″.
– Metric Tapes
Our custom metric Belt Diameter Tapes feature a 50.8 mm wide vernier section and a 25.4 mm wide gauge member. Additional vernier widths of 63.5 mm and 127 mm are also available. These tapes are offered in Blue Easy-to-Read, with a standard material thickness of 0.25 mm.
All Pi Tape® Belt Tapes are manufactured under strict quality-controlled conditions to ensure consistent accuracy. They are designed to deliver direct, repeatable readings without the need for conversion or calculation.
Accuracy: ±0.003″ up to 48″ (±0.09 mm up to 1200 mm)
Calibration: Most Pi Tape® brand precision Belt Tapes are furnished with a Calibration Report. Measurement results are traceable through NIST to the International System of Units (SI), providing documented confidence in accuracy.
Note: A Calibration Report may not be available for extra-wide Belt Tapes.
Email Us to Order a Custom Belt Tape
Custom Belt Tapes are made-to-order and are not stocked items. To request a quote or place an order, follow these simple steps:
Pi Tape® can manufacture precision, custom-made Belt Tapes to meet your exact needs. Custom sizes, widths, and configurations are available to suit your specific application.
