how to measure

Precision Outside Diameter Tapes

Measure accurately with our Precision Outside Diameter (OD) Tapes. Follow step-by-step instructions in inches or millimeters, watch the tutorial video, and download PDF guides for quick reference. Ideal for high-accuracy applications requiring ±0.001″ (±0.03mm) precision.
First Steps

Brief summary before diving in

01

Ensure the OD tape and the part to be measured are clean.

02

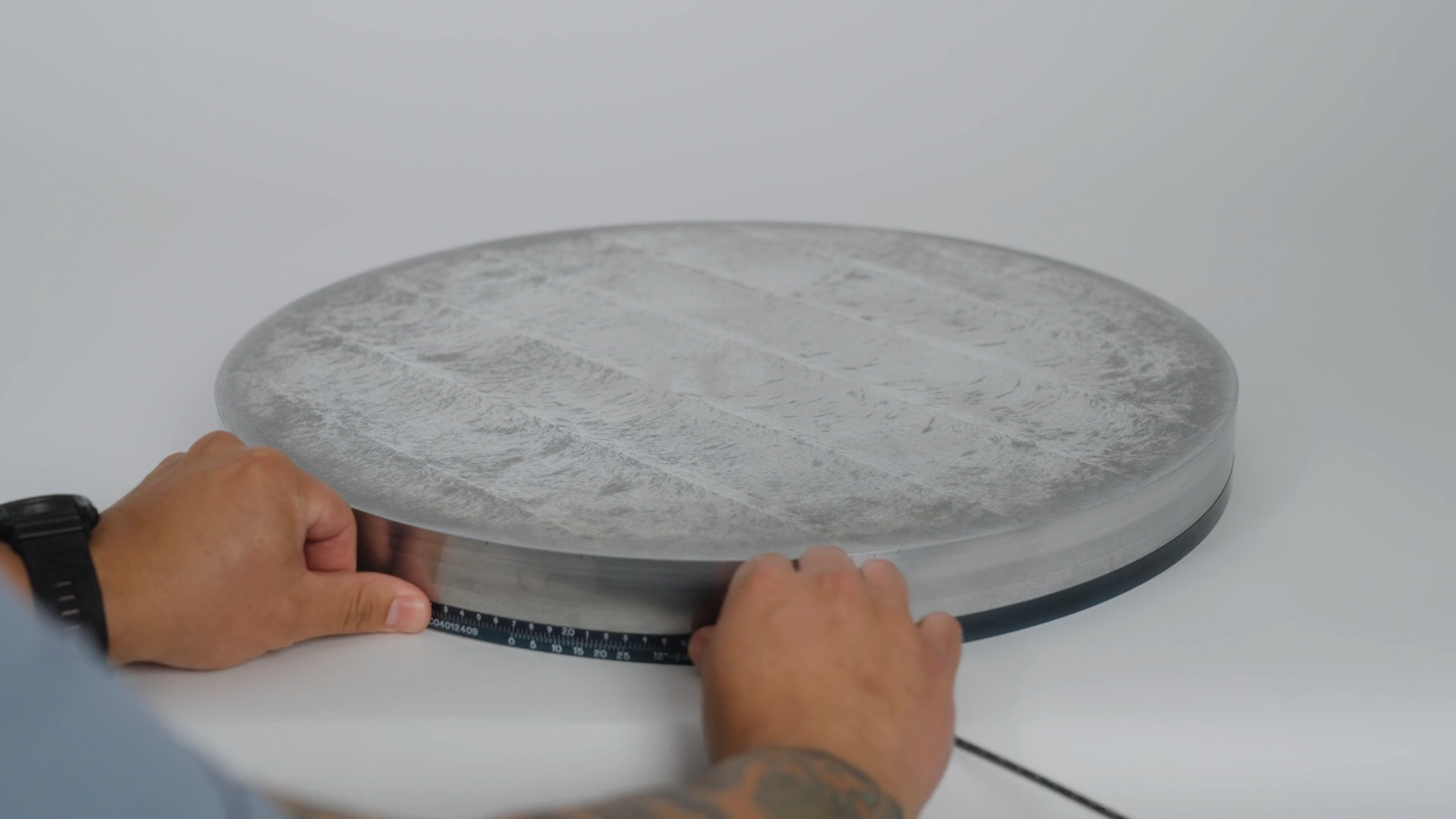

Wrap the tape snugly around the outside of the object, aligning the zero mark and apply 5 lbs. (2.25kg) of tension.

03

Read the measurement directly from the tape scale.

04

For long or heavy parts, use a guide or clamp to maintain alignment.

Instruction Guides

Choose your preferred unit to view instructions online or download the PDF for offline use.

Watch Video Tutorials

Learn how to measure accurately with the Precision Outside Diameter Tapes in this step-by-step video

Outside Diameter (in)

Play Video

Outside Diameter (mm)

Play Video
Extra Resources

Explore our entire Technical Library

Access all Pi Tape® measurement resources in one place — PDFs, videos, and reference materials for every tape type, size, and unit.
